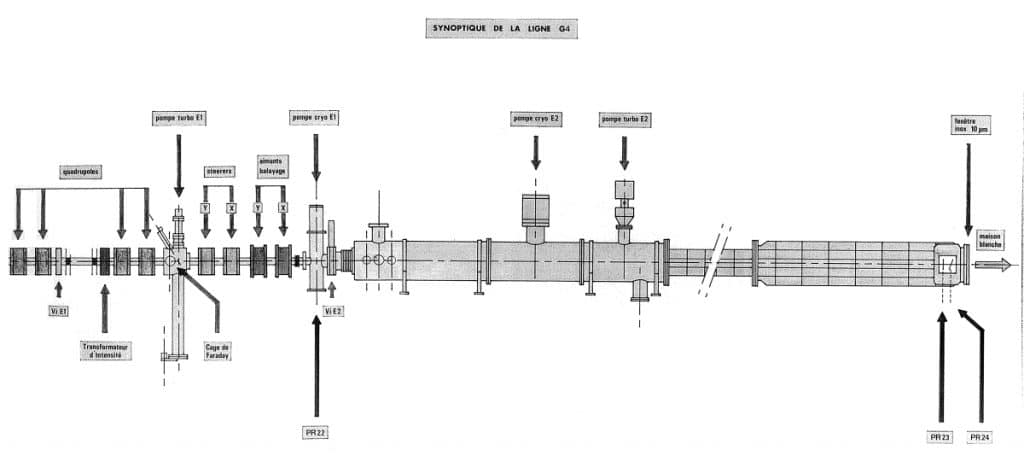

G41 beamline, in room G4, is fully dedicated to industrial applications with medium and high energy ion beams.
Technical specifications:

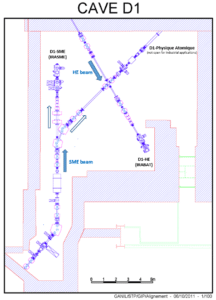

In the D1 room, two beamlines are dedicated to research and industrial applications :
Technical specifications are summarized below:

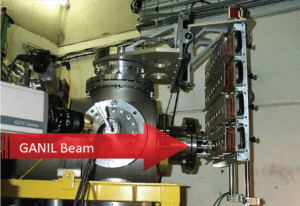

D1-HE / IRABAT |

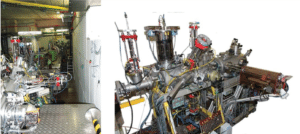

D1-SME / IRASME |
|
Energy |
12C ions –> 95 MeV/A |
12C ions –> 14 MeV/A |
Intensity |
Max = 2.4 1010 pps |
Max = 5 1011 pps |
Irradiation surface Scanning magnets Horizontal 400 Hz x Vertical 4 Hz |
60 x 60 mm |
50 x 50 mm |
Irradiation |
Under vacuum |
Under vacuum |
In the air (after a 25 µm window) |
||
Beam intensity monitoring |
X-ray detector (low intensities) |
X-ray detector (low intensities) |
Secondary emission detector (high intensities) |
Secondary emission detector (high intensities) |
